Stainless Steel Mighty Springs Manufacturer
Mighty Springs, Compression Springs, Stainless Steel Mighty Springs
- Description
Description
Decription

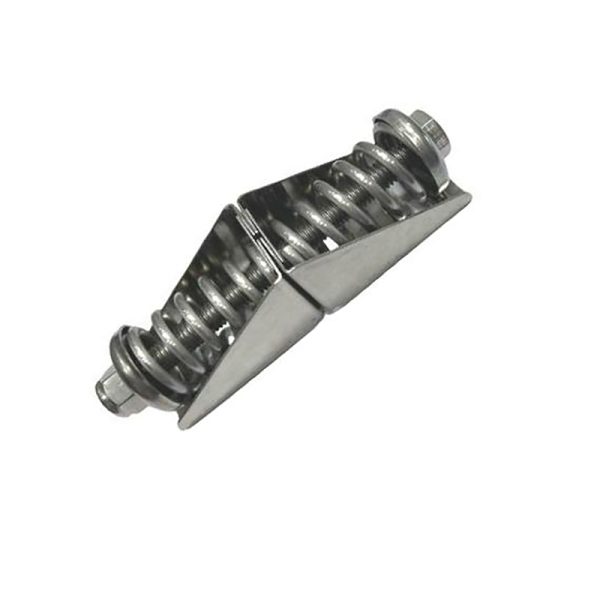

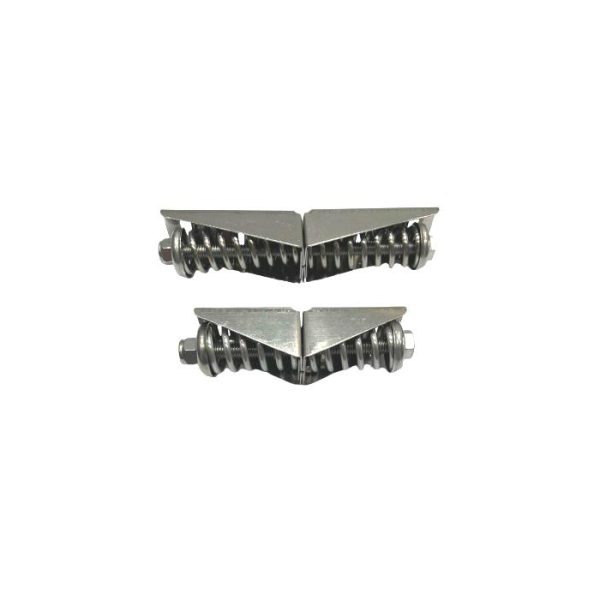

Stainless Steel Mighty Springs for Jacketing & Pipe Insulation
Stainless Steel Mighty Springs Installation Steps & Best Practices:
Start by threading the stainless banding through the spring base slot and folding it back. Crimp a 3/4″ seal to secure the band end, then wrap the band to the next spring and repeat until it circles the object. While tightening, compress each spring about 1/2″ (12.7 mm) and keep stresses evenly distributed. For large OD pipes or tanks, use closed or lap-over seals and add more springs as needed. In corrosive or marine settings, choose 316 stainless steel for better resistance.
Materials & typical specifications
| Item | Description |
|---|---|
| Material | Stainless steel (SS302, SS304, SS316) |
| Typical Lengths | 4″ (100 mm), 2″ (50 mm), Other sizes are available upon request |
| Typical width | 19mm |
| Load Type | Compression |
| Standard compression rate | 78 lb / inch(approx. 13.6 N/mm) |
| Recommended spacing / quantities | 1 Mity-Spring per 25 ft (7.62 m) of banding |
| Maximum Recommended Compression | 1-1/2”(38mm) per spring |
| Recommended Installed Compression | Approx. 1/2″ (12.7 mm) total compression per unit (spring halves each compressed ~1/4″ / 6.35 mm) |
Key Features & Benefits
- Compact design for easy field installation.
- High tensile strength suitable for long-term jacket retention.
- Stainless steel options (including 316/316L) for improved corrosion resistance.
- Compatible with standard 3/4″ (19 mm) banding and seals for convenient onsite supply.
Mechanical Properties
| Stainless Steel Grade T-304, ASTM A-240 | |||||
| Grade | Ultimate Tensile Strength (MPa) min | Yleld strength 0.2% Proof (MPa) min | Elongation (% on 50 mm) min | Hardness | |
| Rockwell B(HR B) max | Brinell (HB) max | ||||
| 304 | 540 | 230 | 45 | 92 | 201 |
Certification
Hongjing Hardware is an ISO9001 certificated manufacturer. We are specialized in stainless steel strapping produtcs and OEM metal hardware products. Recently, we also focus on the field of fiber optic boxes and FTTH accessories. We can provide different third party inspection certificates, such as SGS, BV or COC.
