Pole Top Make Off Galvanized Steel
We provide a wide range of sizes to fit different project needs. Hongjing Pole Top Make Offs are compatible with various stay wire diameters.
Note: Custom sizes can be manufactured to match your specific requirements.
- Description
Description

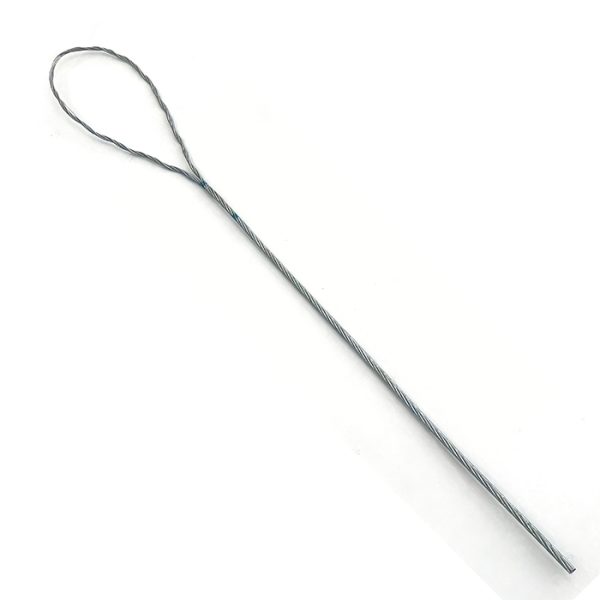

Galvanized Steel Pole Top Make Off for Power & Telecom Lines
The Pole Top Make Off, also known as a Wrap Guy Link, is a high-quality hardware component used to secure utility poles. It acts as a specialized clamp that connects the pole to the ground via stay wires.
This product is a modern alternative to traditional wedge clamps and UT clamps. It makes installation faster and more efficient for power distribution and telecommunication networks. Made from high-strength galvanized steel, it features excellent corrosion resistance.
Technical Specifications
We provide a wide range of sizes to fit different project needs. Our Pole Top Make Offs are compatible with various stay wire diameters
| Feature | Details |

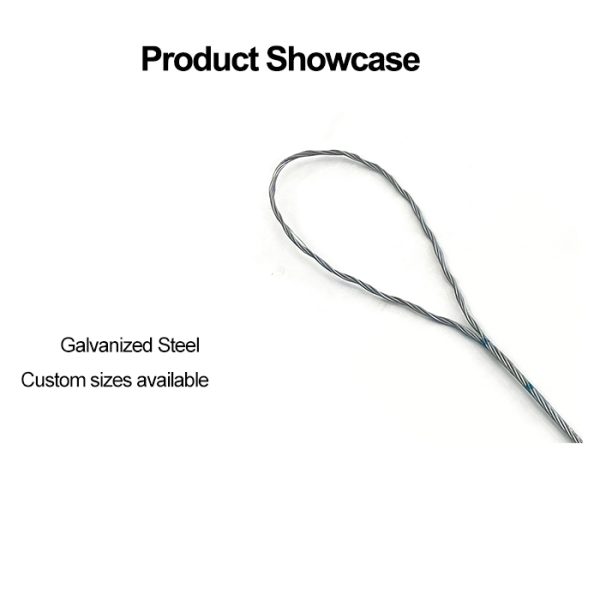

| Material | Galvanized Steel |
| Stay Wire Diameter | 7.21mm to 16.25mm (Custom sizes available) |
| Application | Power lines, Telecom poles, Guy wire termination |
Note: Custom sizes can be manufactured to match your specific requirements.
| Item No. | Stay Dia. (mm) | Stranding (mm) | Rods Per Set | Sets Per Pack | Approx Pack Mass (kg) | Approx Length (mm) | Color Code |
| HJ- PTMO001 | 7.21 | 3/3.35 | 4 | 15 | 8 | 2200 | Black |
| HJ- PTMO002 | 7.92 | 7/2.65 | 4 | 15 | 14 | 2200 | Brown |
| HJ- PTMO003 | 8.76 | 3/4.00 | 4 | 15 | 17 | 2200 | Red |
| HJ- PTMO004 | 9.75 | 7/3.25 | 4 | 15 | 19 | 2200 | Black |
| HJ- PTMO005 | 9.8 | 4/4.00 | 4 | 15 | 19 | 2200 | Black |
| HJ- PTMO006 | 10.06 | 7/3.35 | 4 | 15 | 14 | 2200 | Blue |
| HJ- PTMO007 | 10.97 | 5/4.00 | 4 | 10 | 17 | 2200 | Brown |
| HJ- PTMO008 | 12.19 | 7/4.00 | 4 | 10 | 20 | 2200 | Green |
| HJ- PTMO009 | 13.25 | 19/2.65 | 4 | 10 | 24 | 2200 | Orange |
| HJ- PTMO010 | 16.25 | 19/3.25 | 7 | 5 | 18 | 2200 | Brown |

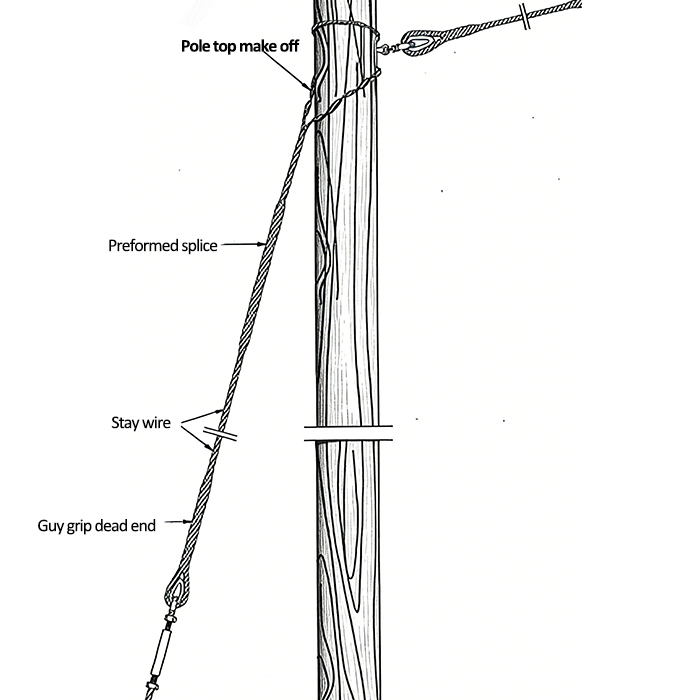

How to Install the Pole Top Make Off:

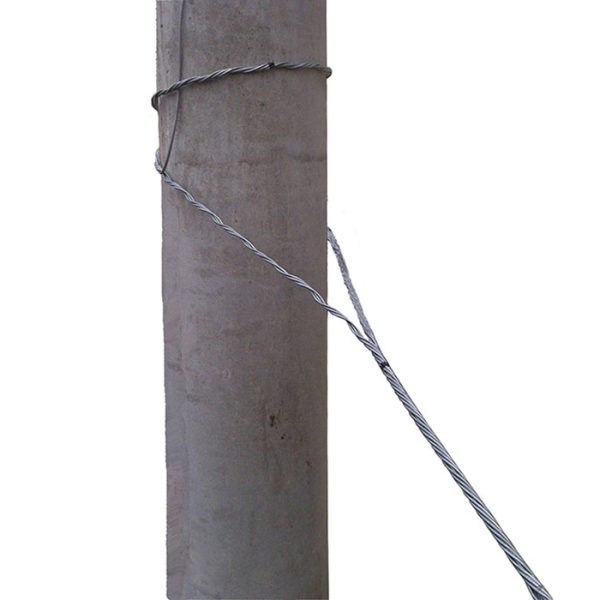

- Place the Pole Top Make Off around the top section of the utility pole.
- Connect the Ends: Bring the two legs of the make-off together to form a secure loop around the pole.
- Link with Stay Wire: Connect the end of the make-off to the Preformed Splice or the Stay Wire directly.
- Complete the Line: Ensure the stay wire runs down to the ground, secured by a Guy Grip Dead End and a turnbuckle or anchor rod for proper tension.
