Center Punch Clamp Specifications: The Ultimate Selection Guide

When assembling high-pressure industrial hoses, understanding the right center punch clamp specifications is critical for safety. A wrong size or material can lead to leaks and equipment failure. This guide provides our official size chart and explains how to choose between Galvanized Steel, SS201, and SS316 materials.

Understanding the Material Grades (Galvanized vs. Stainless Steel)

Selecting the right material is the first step. It depends on your working environment and budget.

• Galvanized Steel: This is the most cost-effective option. We coat the steel with zinc to prevent rust. It works well for indoor use or temporary outdoor projects. If you need to manage a tight budget for non-corrosive tasks, galvanized steel is the best choice.

• SS201 Stainless Steel: This is a high-strength material. It offers better rust resistance than galvanized steel. It is the standard for most industrial applications and automotive hose assemblies.

• SS316 Stainless Steel: This is the premium “Marine Grade” option. If your project is near the ocean, involves chemicals, or operates in oilfields, SS316 is essential. It offers the highest level of corrosion protection.

Material Comparison Table:

How to Measure for the Correct Clamp Size

Many buyers make the mistake of using the hose’s nominal size. To get a “leak-free” seal, you must follow the O.D. Rule:

1. Install the Fitting: Push the fitting or coupling into your hose first.

2. Measure the Outside Diameter: Use a caliper to measure the Outside Diameter (O.D.) of the hose while the fitting is inside.

3. Choose the Clamp: Select a clamp with an Inside Diameter (I.D.) that is slightly larger than your measured O.D. This ensures the clamp can slide over the hose easily before tightening.

Center Punch Clamp Specifications

Our clamps are manufactured under ISO 9001 quality standards to ensure precision. Below are the detailed center punch clamp specifications:

Galvanized Steel Center Punch Clamp Specifications

(Note: We offer OEM services for custom sizes and bulk orders. Contact us here.)

Preformed vs. Band & Buckle: Which Spec Suits You?

Depending on your workflow, you may choose different formats:

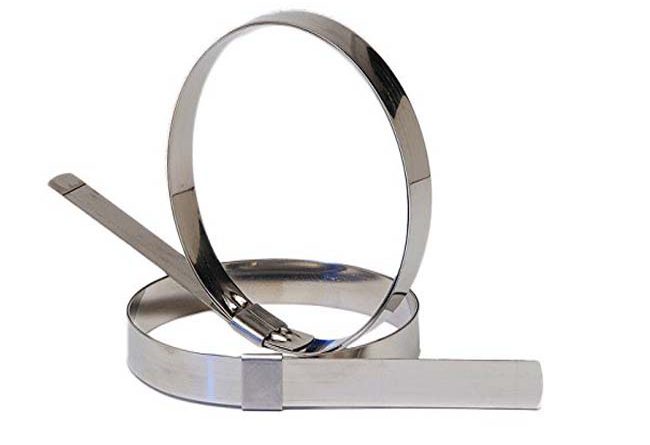

• Preformed Clamps: These are ready-to-use rings. They are best for factory production lines because they install very fast.

• Universal Banding: This comes in a roll with separate buckles. It is best for field repairs because you can cut the band to fit any diameter on-site.

Critical Installation Tools for These Specs

According to our center punch clamp specifications, these clamps are permanent and must be locked using specialized tools. We recommend the HJ-16020 Center Punch Banding Tool for a secure, professional finish.

Conclusion

Choosing the correct center punch clamp specifications ensures your hose assembly is safe and durable. Whether you need Galvanized Steel for economy or SS316 for corrosion resistance, our ISO 9001 certified clamps provide the reliability you need.
