Khung lưu trữ giày tuyết sợi quang
HJ-FSU600 fiber optic snowshoe storage bracket stores up to 100m of fiber drop cable or 12m of ADSS cable on aerial lines. It mounts on steel wire or utility poles. Made of PP material, with UV-resistant grade available. Hanging hardware is included.
- Sự miêu tả
Sự miêu tả
Khung lưu trữ giày tuyết sợi quang

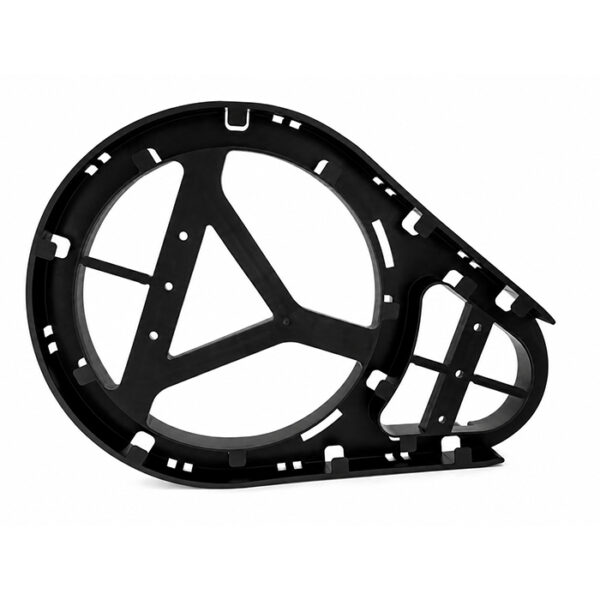

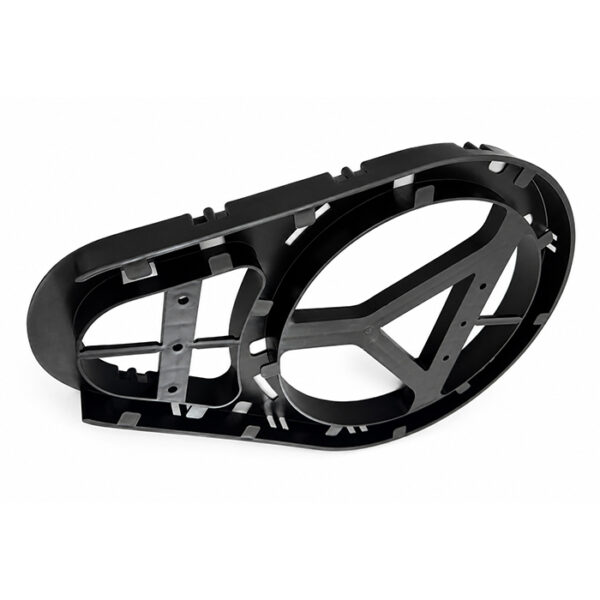

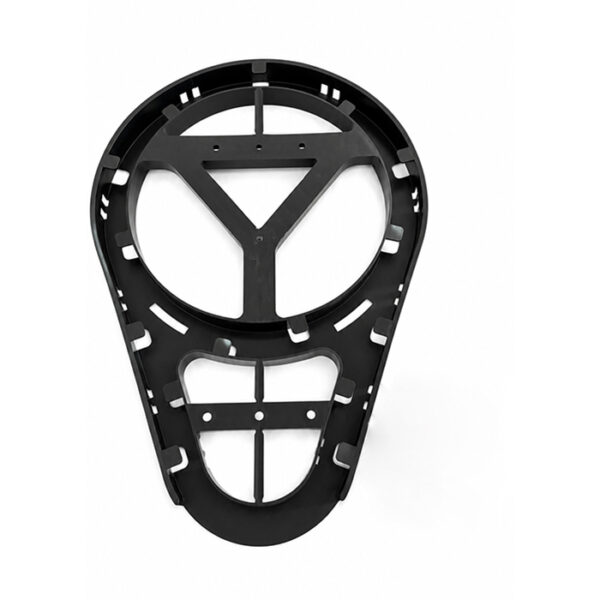

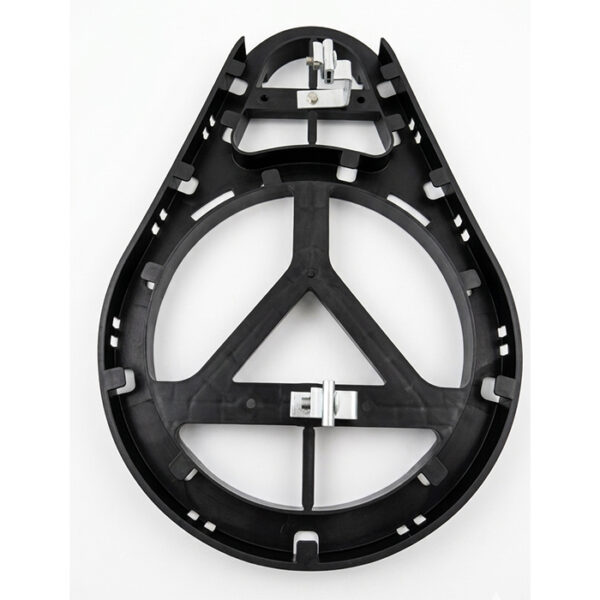

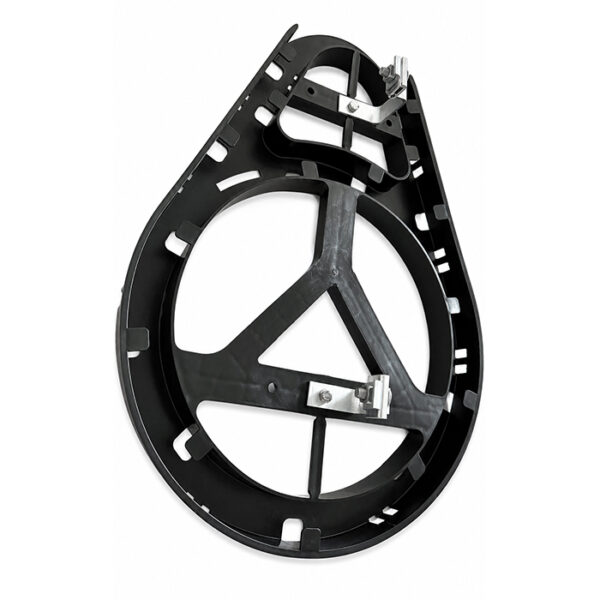

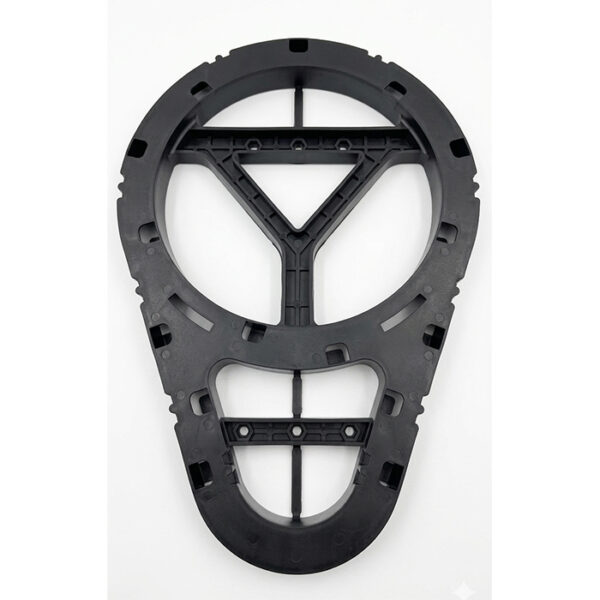

Hongjing Fiber Snowshoe is also known as a fiber optic snowshoe storage bracket. It is designed to coil and store excess cable on aerial FTTx lines. The bracket mounts directly on steel wire or utility poles. This keeps overhead installations clean and organized without damaging the cable.
It is made of PP material. UV-resistant grade is also available. Kết quả là, it works well in outdoor environments. It is a cost-effective solution for both ADSS and fiber drop cable storage.
Đặc trưng
- Simple structure for fast, Cài đặt dễ dàng
- Drainage holes prevent water and ice from building up in the channel
- Built-in tie-wrap slots keep cables secured in place
Thông số kỹ thuật
| tham số | Giá trị |
|---|---|
| Model | HJ-FSU600 |
| Channel Section | 40 × 40 mm |
| Overall Dimensions | 440 × 640 × 40 mm |
| Inside Coil Diameter | 400 mm |
| Minimum Bend Diameter | 20 mm |
| Nhiệt độ hoạt động | −30 to +60 °C |
| Cân nặng | 1,100 g |
| Storage Capacity — Drop Cable | Lên đến 100 tôi |
| Storage Capacity — ADSS Cable | Lên đến 12 tôi |
Cài đặt

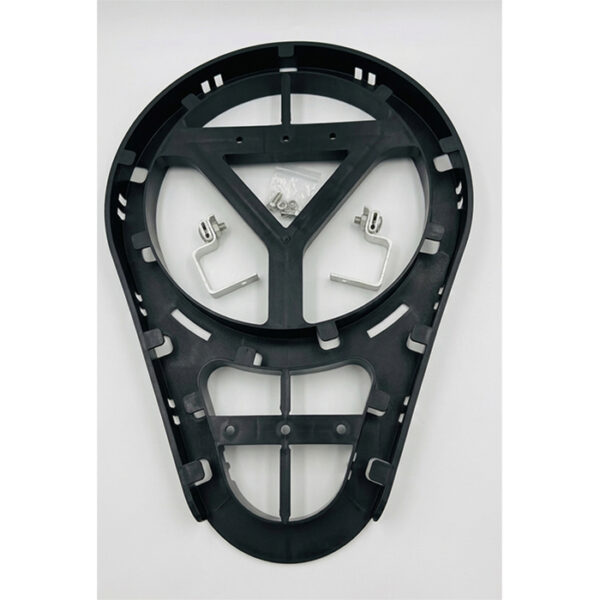

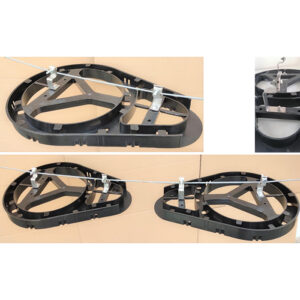

Đầu tiên, hang the cable storage bracket on the steel messenger wire using the included bolt-nut-washer assembly and strand clamps.

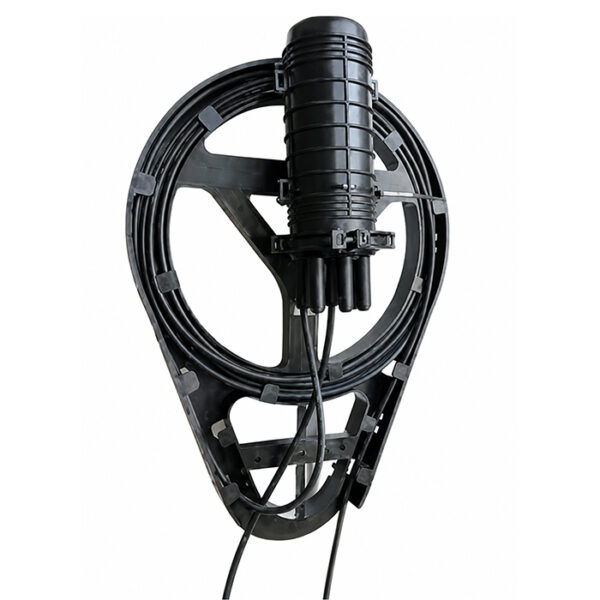

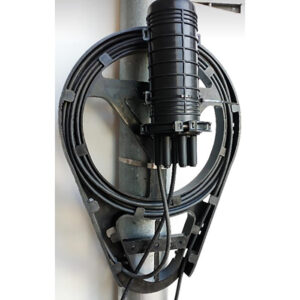

For pole mounting applications, secure with dải thép không gỉ. Then coil the excess cable into the channel. Cuối cùng, fasten the cable with tie-wraps through the built-in slots.
Ứng dụng
- FTTx last-mile aerial deployments
- ADSS cable overhead installations
- Aerial fiber networks that need organized cable reserve storage
